Eastern City (5)

Changing the propeller.

A couple of weeks before the fitting out was completed the propeller was changed. I remember this happening, but after 39 years cannot remember why.

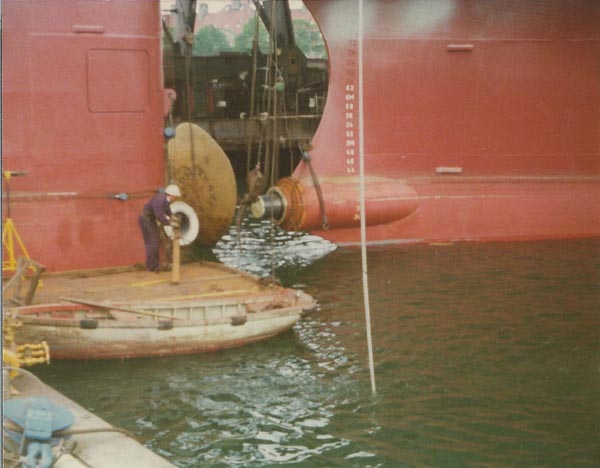

The nut is removed

   The propeller is lifted off

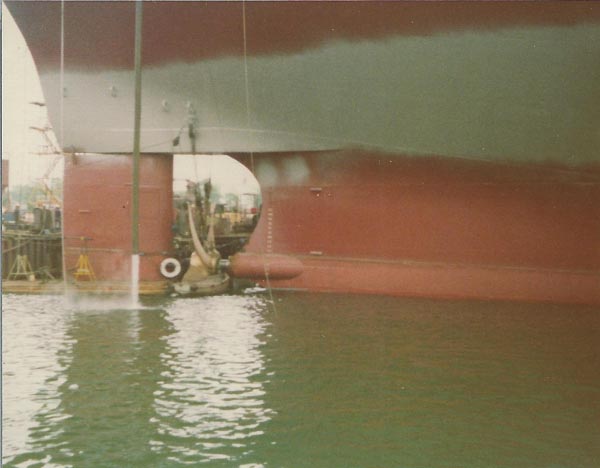

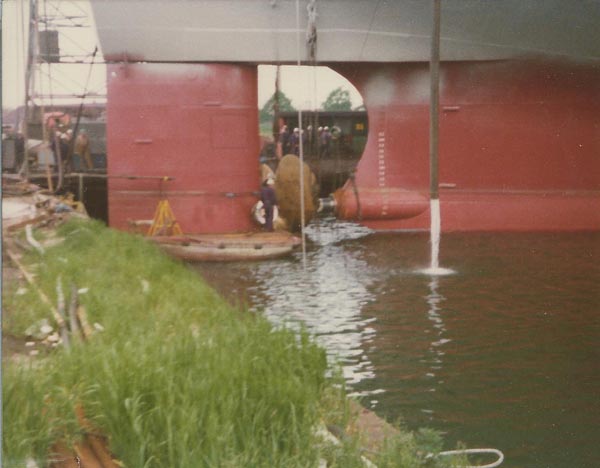

The ship is ballasted down by the head so the stern tube is clear of the water. The propellor shaft was only pulled in far enough for the propeller to be removed.

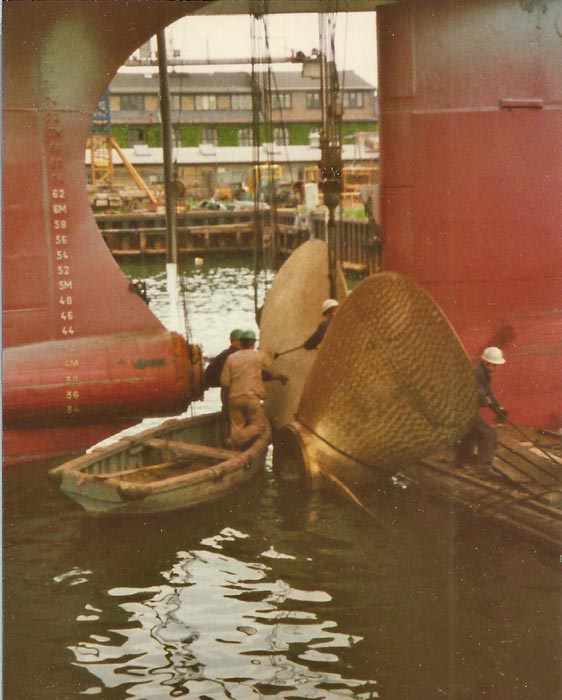

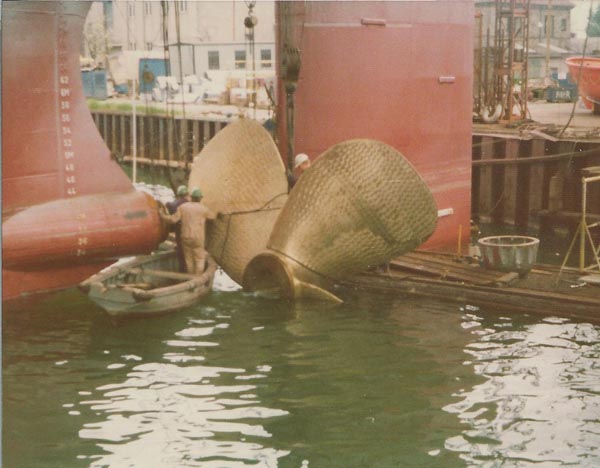

Pulling the propeller off the shaft   Lowering the propeller into the water
The propeller is lowered partly into the water so it can be rigged for removal.

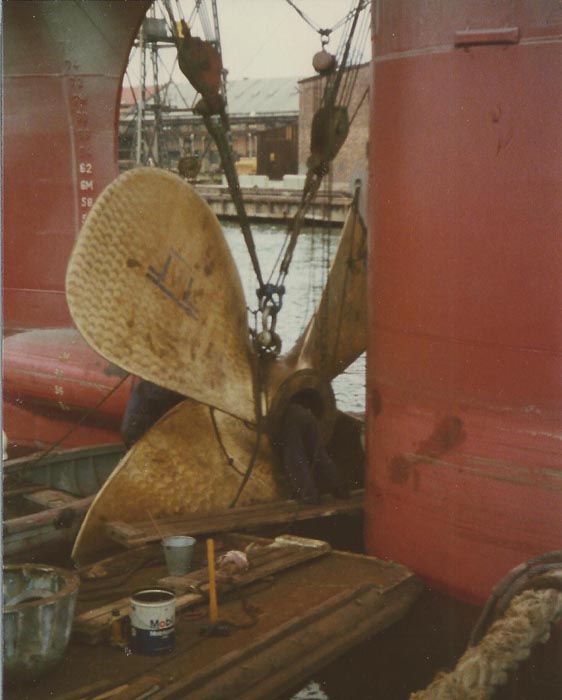

Preparing to lift out of the water with shore crane   Preparing to lift out with shore crane
The propeller is rigged so that it can be lifted out by the shore crane.

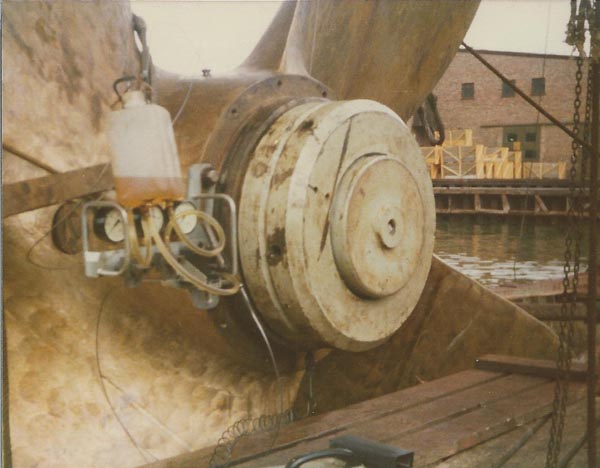

The propeller nut after tightening

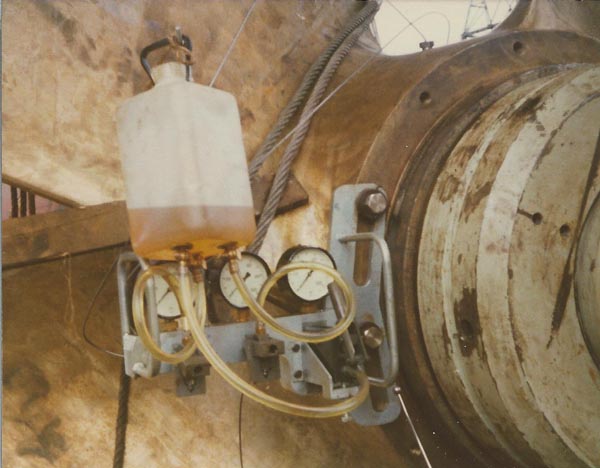

   Close up of pumps
The pumps for tightening or removal of propeller and nut. The two small pumps are for the propeller boss and the larger pump for the nut. All photos copyright © Reardon Smith Ships.
